UHDM V5: Reprocess Database Between Two Dates

UHDM V5: Reprocess Database Between Two Dates

The UHDM V5 now includes a feature to retrieve data between two specified dates.

This new capability allows users to filter and process measurements taken within a defined date range.

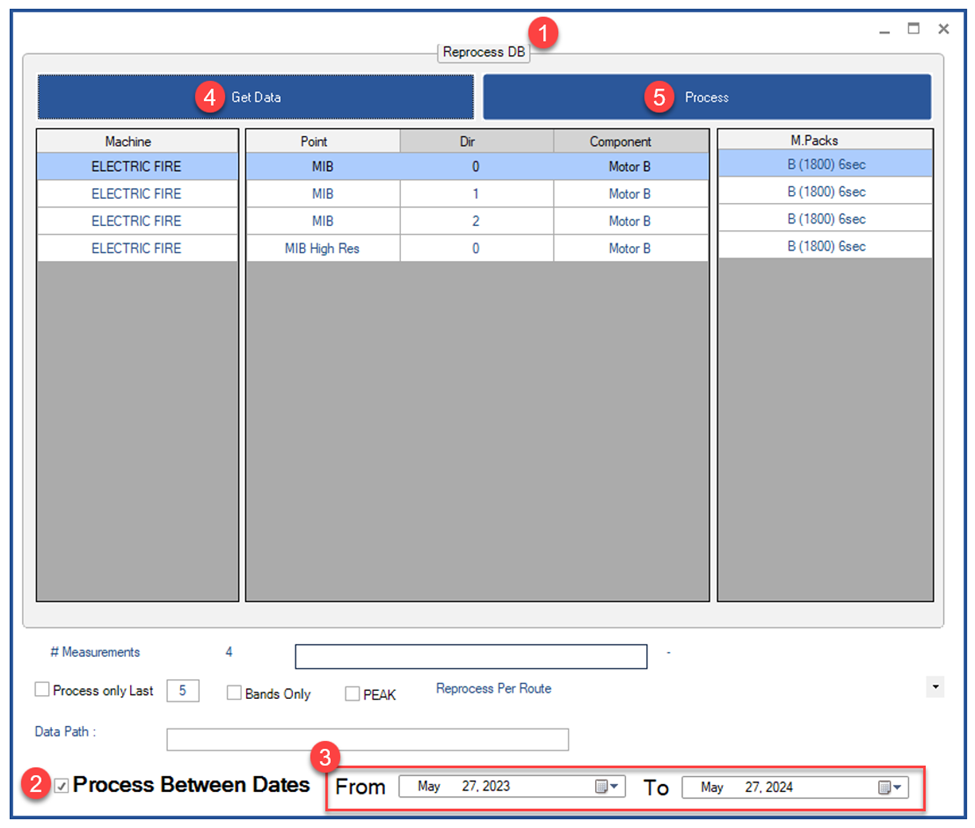

To use this feature, follow these steps:

1.      Open the Reprocess DB Window

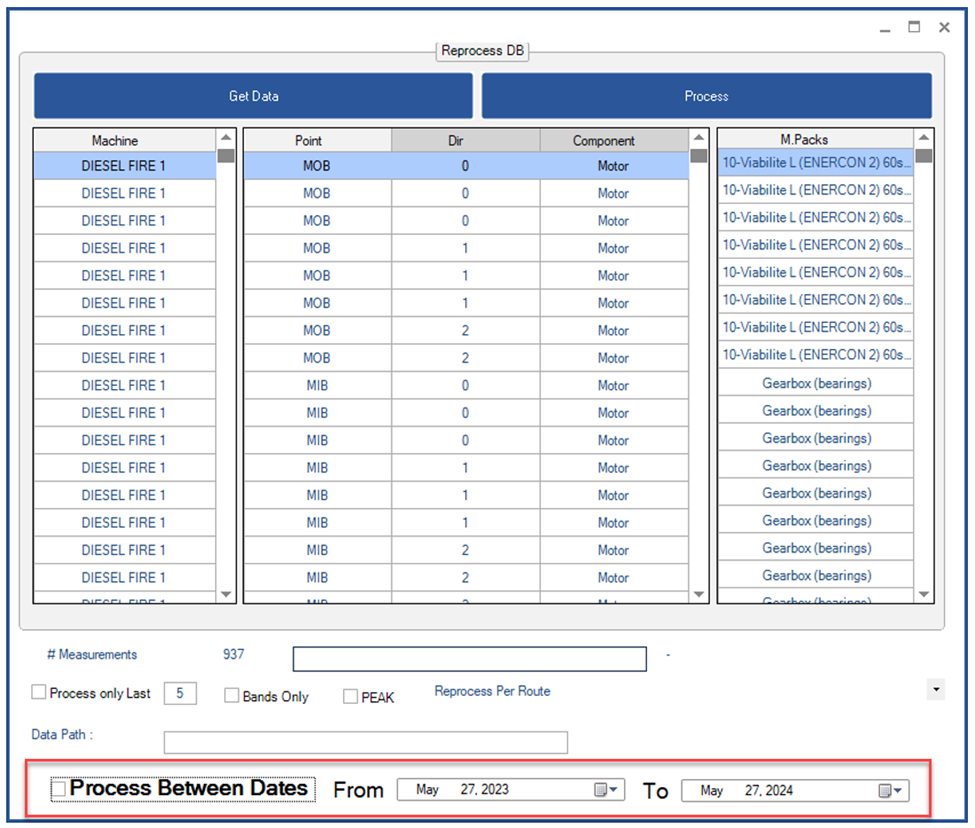

2.      Check the box labelled "Process Between Dates"

3.      Choose the start date (From) and end date (To) for the data you wish to process

4.      Click on the button: Get Data

5.      Once the data is retrieved, click on the "Reprocess" button to proceed with the processing
